Product Description
Factory fog lights are built to meet minimum output requirements. Every aftermarket design available provides similar lackluster performance, but with an LED. The focus has been on LED appearance, not increased output. There has never been an aftermarket fog light designed from the ground up for performance - until now.
Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light for the Jeep JL Wrangler delivers up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

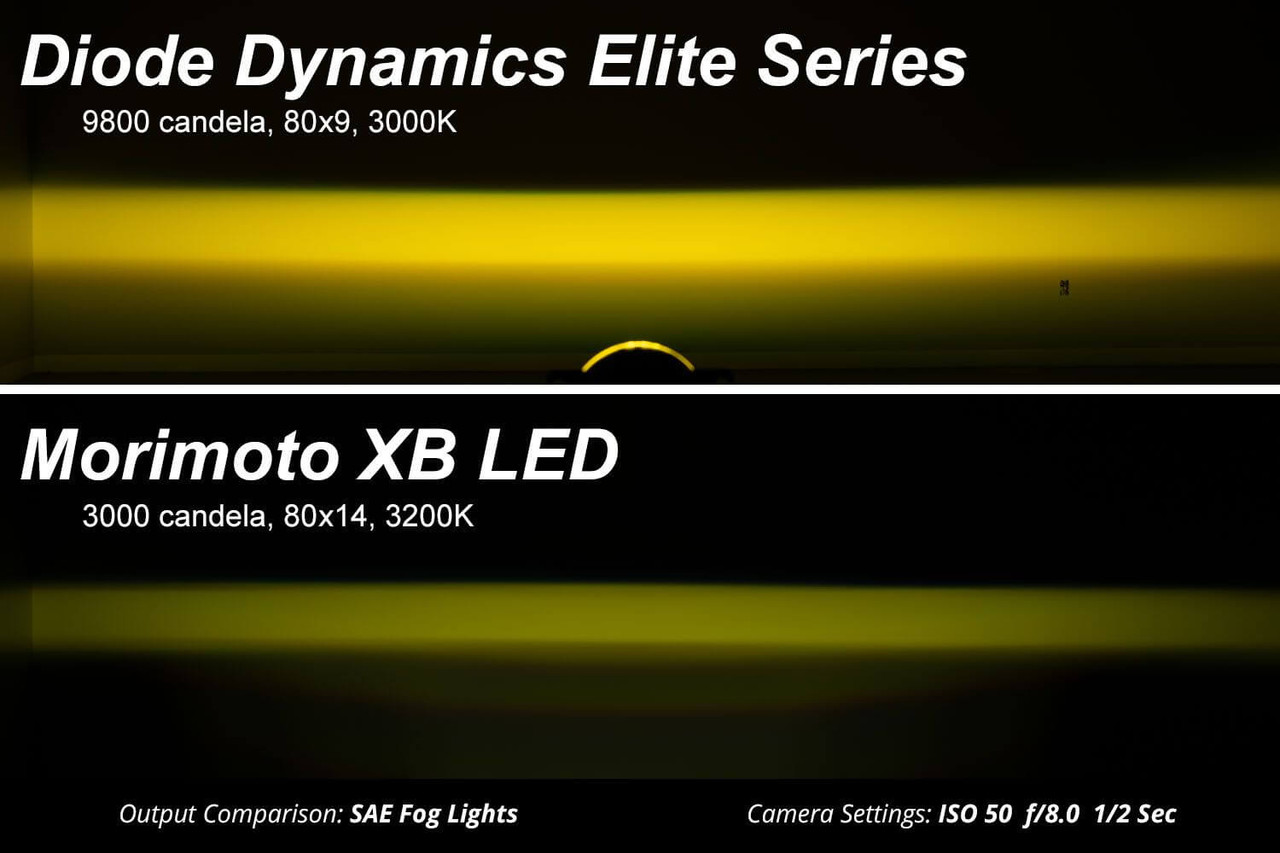

Output that Outperforms. The Elite Series Fog Lamp is built around a highly engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce a light pattern that is wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Bolt-On Fitment. Elite Series Fog Lamps were designed using a 3D scanner and installed on the vehicle in our testing garage, so you can rest assured they will be a perfect fit. They can be installed on your Jeep JL Wrangler in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place, using sturdy glass-fiber-reinforced brackets. With built-in adjustment, the lamps can be aimed after installation. To wire them up, a pair of waterproof plug-and-play adapters are included to connect the lights to your factory bulb sockets.
Features:
- High-performance OEM-grade replacement for Jeep JL Wrangler
- Custom-engineered optic provides extremely wide, intense light output
- Distinctive integrated amber backlight
- Road-legal fog light (SAE F3 compliant)
- Plug and play main beam, no modification needed
- Engineered and assembled in USA
Specifications:
- Measured Lumens: Yellow: 1,650 lm
- Intensity (cd): Yellow: 8,700 cd
- Color Temp (CCT): 3000K
- Beam Angle: Fog, 80°x6°
- Power (watts): Main Beam Yellow: 15, Backlight: 0.3
- Operating Voltage: 9-16V
- Current (amps @ 13.2V): Main Beam Yellow: 1.2, Backlight: 0.025
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Multi-Die Automotive Emitters
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP68 Waterproof
Fitment:

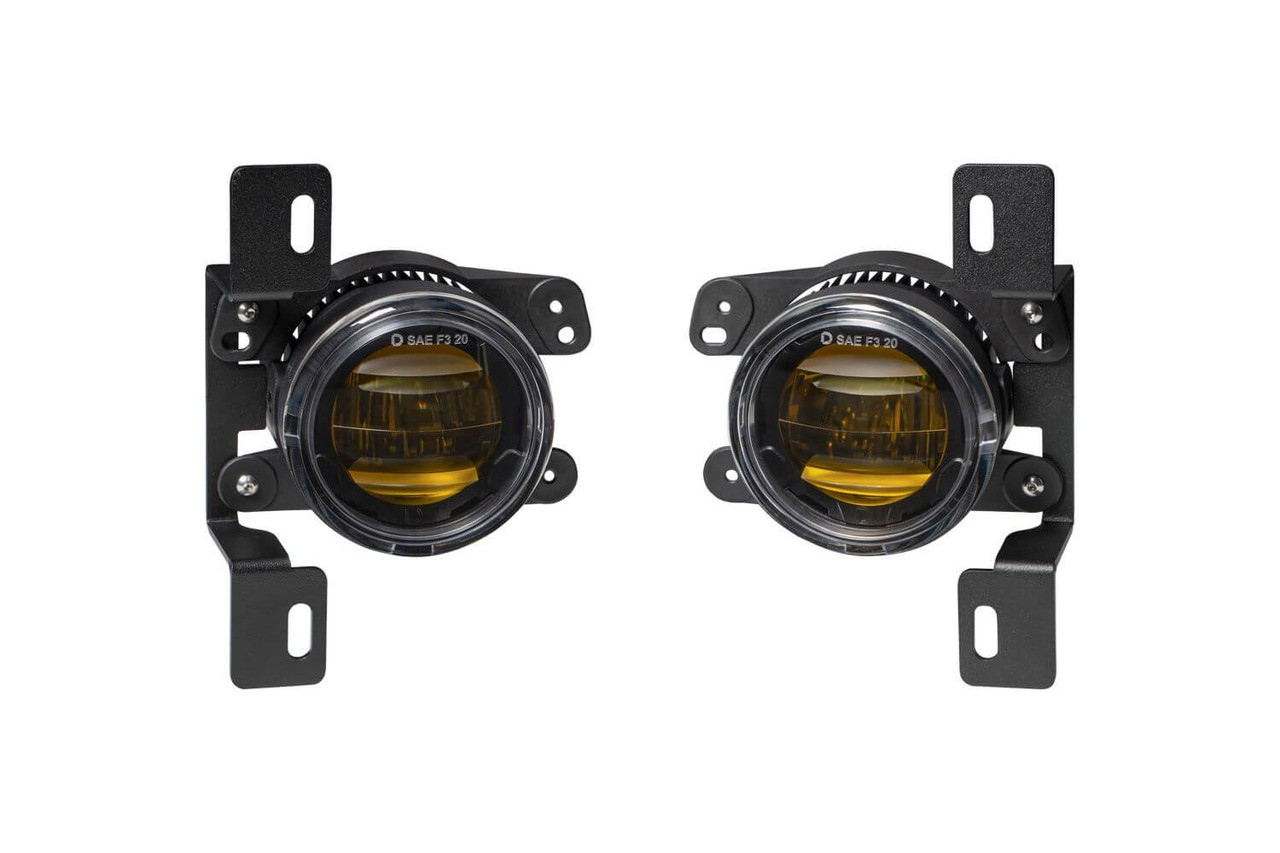

- Metal Bumper: Compatible with Rubicon trim levels that have a steel bumper.

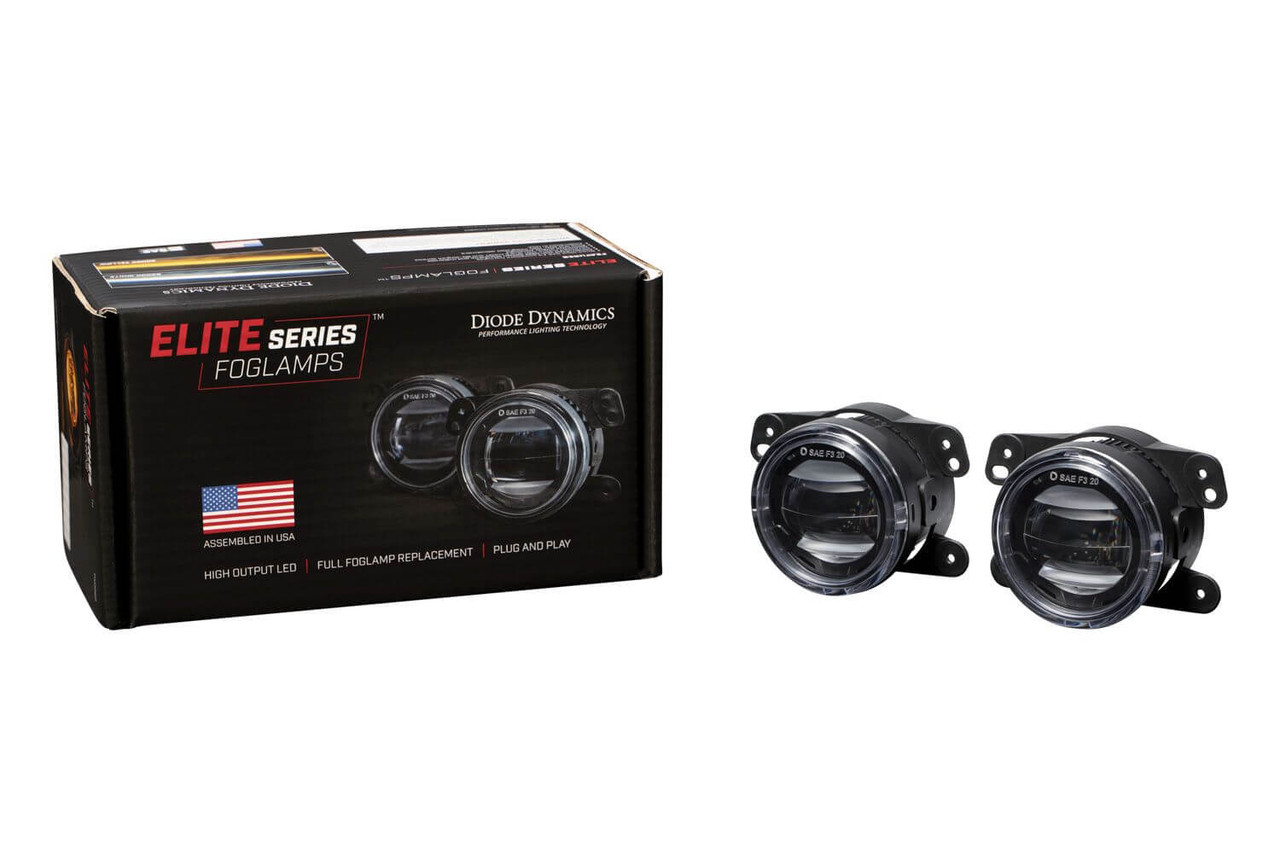

In the Box:
Steel Bumper (Type MR Kit)
- Two (2) Elite Series Type M fog lamps
- Two (2) Type MR Mounting Brackets
- Two (2) 9006 4-pin DT backlight tap wires
- Two (2) 5202 4-pin DT backlight tap wires
- Two (2) T-taps
- Hardware
